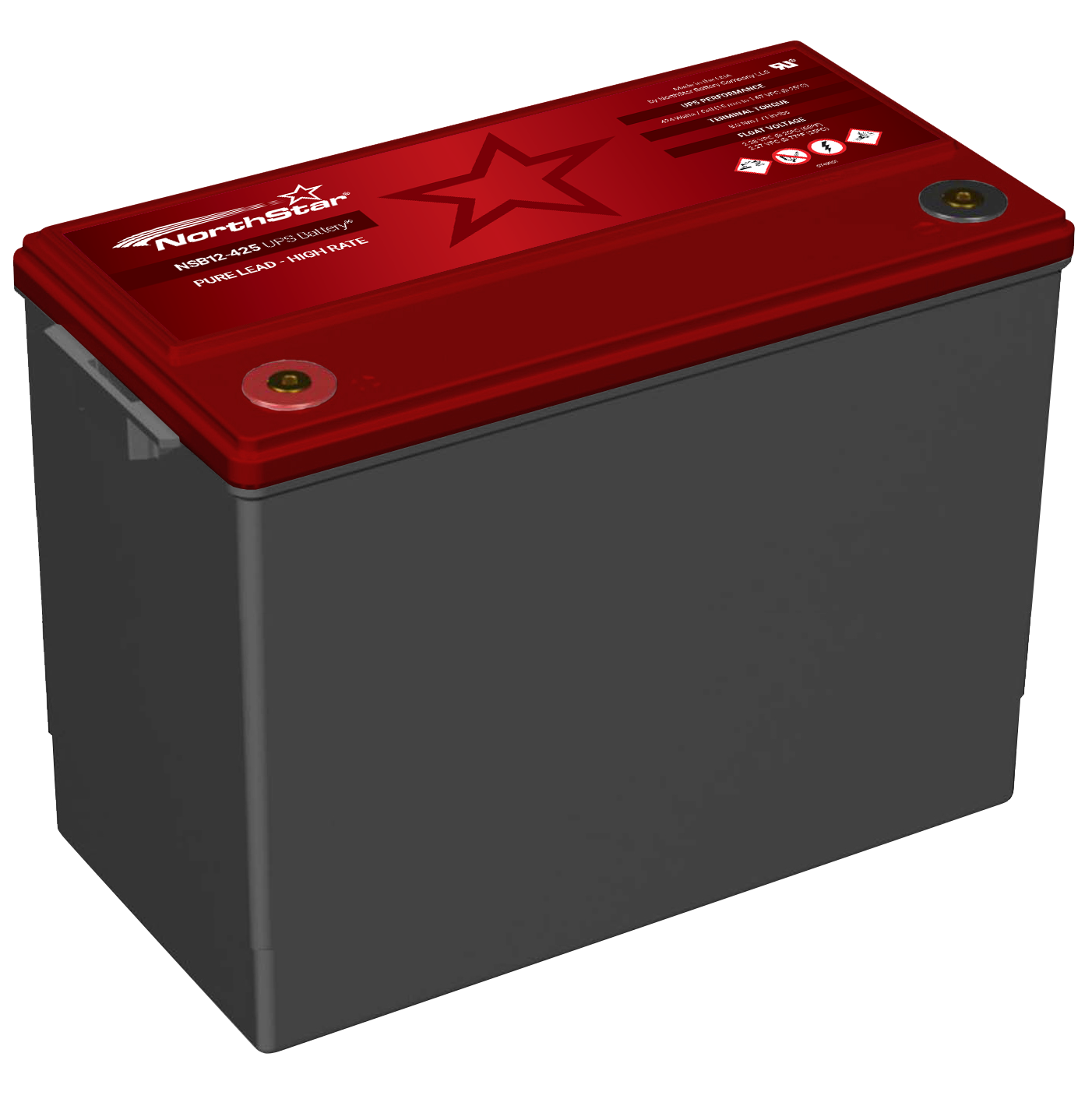

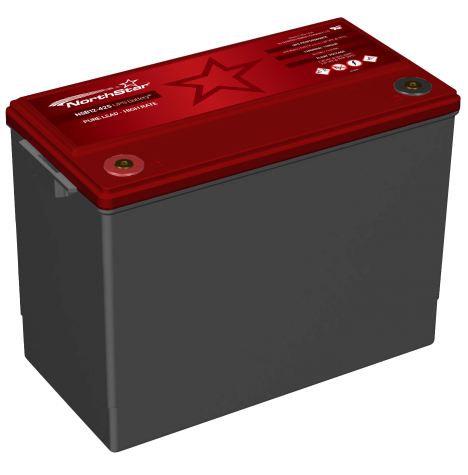

NorthStar UPS NSB 12-425

SKU: NSB-12-425-USB-CT-ON-CA
12V 425Wpc Pure Lead Battery for UPS applications
Need:
Long Shelf and Cycle Life, Wide Operating Temperature, Deep Discharge Recovery, High Rate Power Delivery
Sector:
Uninterruptible Power Supply
Industry:
Technology, Infrastructure
Minimum Quantity
2
My Wishlist
Compare
Description

Pure Lead - High Rate

The NSB UPS Battery® delivers superior performance at high discharge rates down to <15 mins.

Features
  • Pure lead electrochemistry greatly increases temp and corrosion resistance while reducing component aging
  • Thin plates deliver large surface area high power density and low resistance
  • Design life 15+ years at 20°C (68°F)
  • Extra long life at high temp operation 40°C (104°F)
  • EUROBAT design life definition: Very Long Life (12+ years)
  • Fast recharging
  • High cyclic performance
  • Operating temperature range -40°C to +65°C (-40°F to 149°F)

Details

Terminal Configuration: Top Terminal
Terminal Type: Female M6 x 1.0
Volts: 12V
Battery Capacity: 425Wpc
Capacity Rate: Capacity Rate is 15 min rate to 1.67 volts/cell @ 77°F (25°C)
Short Circuit Current: 3900A
Length: 34.1 CM
Width: 17.3 CM
Height: 21.3 CM
Weight: 34 KG

Construction

  • Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
  • Flame retardant (UL 94 VO) and LOI of at least 28%
  • High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
  • Non-halogenated thermally sealed plastic casing

Applications

  • Wireless and fixed line communications
  • Cable TV
  • Emergency lighting
  • Power generation
  • Offshore applications

Standards

  • EUROBAT design life definition: Very Long Life (12+ years)
  • Compliant with: Telcordia SR4228, IEC 60896; Bellcore GR-63-Core, Issue 1; British, German, and Russian telecom standards; UL approved and UN2800 certified. NorthStar is registered to ISO 9001 and ISO 14001.
