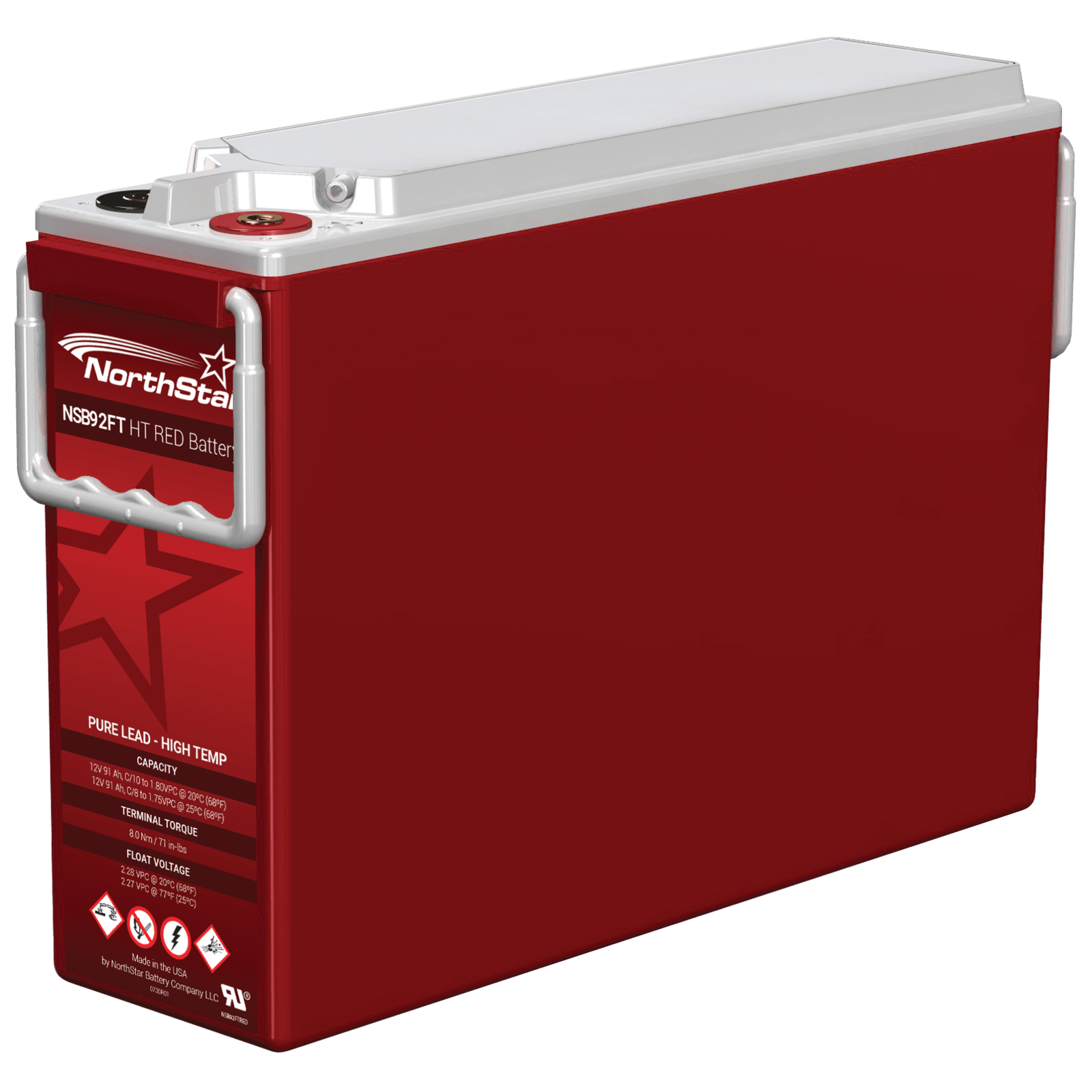

NorthStar HT RED NSB 92FT
Pure Lead - High Temp
High temperatures can severly reduce the life of a battery, driving up maintenance and replacement costs, not to mention the unwanted downtime. And keeping batteries in an optimal 20⁰-35⁰C (68⁰-95⁰F) temperature range can be expensive, or sometimes impossible depending on the site.
The NSB HT RED Battery® provides exceptional performance and long float life, even at elevated temperatures. This means huge potential cost savings, due to reduced battery replacement, cooling and maintenance. Conventional lead acid batteries use lead alloys with additives which increase the strength so they can withstand handling during the battery making process. The downside of using these alloys and additives is that the batteries suffer from faster corrosion and component aging.
Our advanced manufacturing process eliminates the need for alloys and additives - our AGM thin plate pure lead technology delivers larger and thinner plates, which means more surface area for active material reactions, which increases power density.
- Pure lead electrochemistry greatly increases temp and corrosion resistance while reducing component aging
- Thin plates deliver large surface area high power density and low resistance
- Design life 15+ years at 20°C (68°F)
- Extra long life at high temp operation 40°C (104°F)
- EUROBAT design life definition: Very Long Life (12+ years)
- Fast recharging
- High cyclic performance
- Operating temperature range -40°C to +65°C (-40°F to 149°F)
Details
| Terminal Configuration: | Front Terminal |
| Terminal Type: | Female M8 x 1.25 |
| Volts: | 12V |
| Battery Capacity: | 92Ah |
| Capacity Rate: | 10 hr rate to 1.80 volts/cell @ 77°F (25°C) |
| Short Circuit Current: | 3200A |
| Length: | 39.6 CM |
| Width: | 10.8 CM |
| Height: | 26.4 CM |
| Weight: | 30 KG |
Construction
- Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
- Flame retardant (UL 94 VO) and LOI of at least 28%
- High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
- Non-halogenated thermally sealed plastic casing
Applications
- Wireless and fixed line communications
- Cable TV
- Emergency lighting
- Power generation
- Offshore applications
Standards
- EUROBAT design life definition: Very Long Life (12+ years)
- Compliant with: Telcordia SR4228, IEC 60896; Bellcore GR-63-Core, Issue 1; British, German, and Russian telecom standards; UL approved and UN2800 certified. NorthStar is registered to ISO 9001 and ISO 14001.
