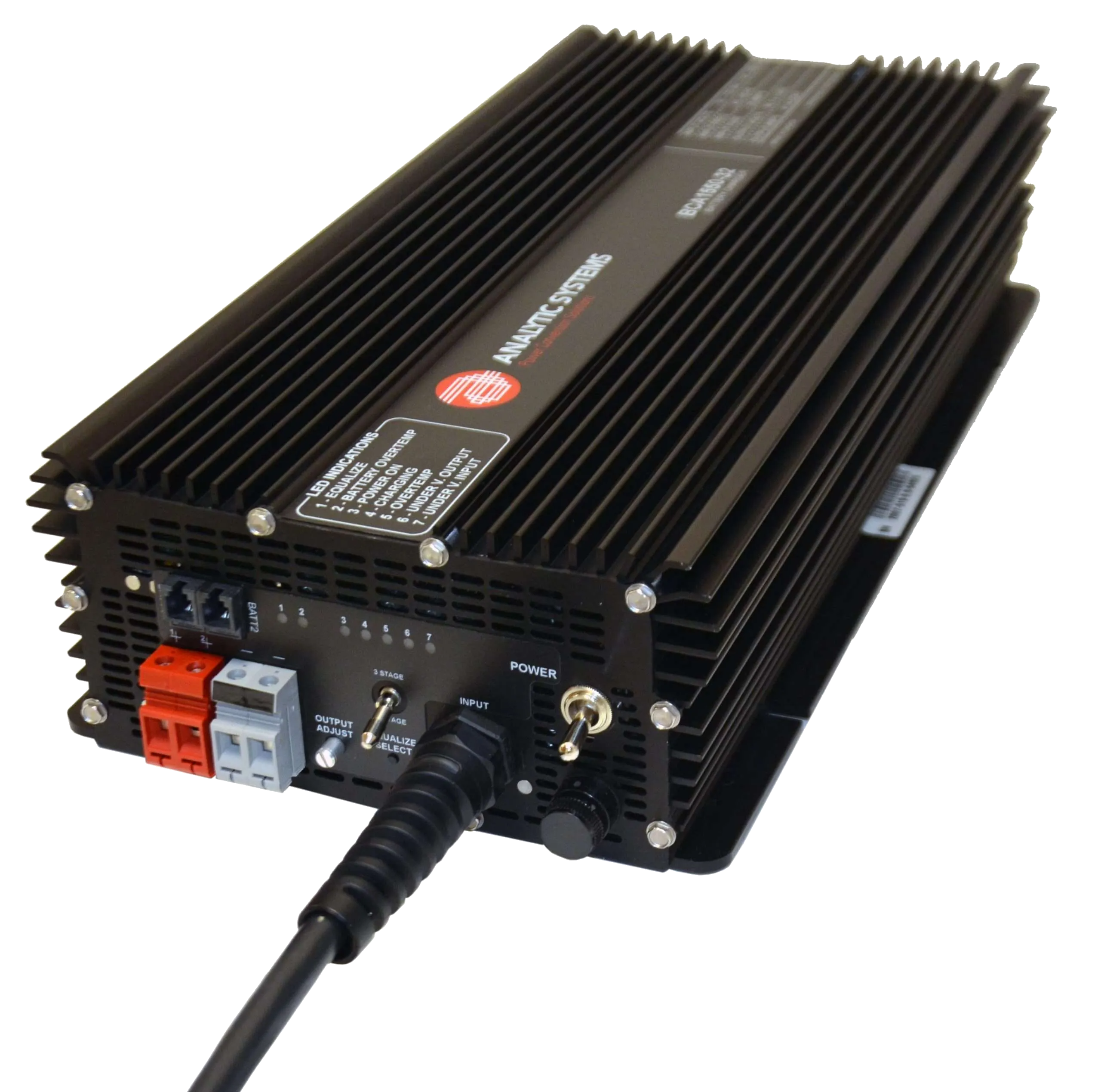

Analytic Systems BCA1550-12
SKU: BCA1550-12-CT-BC-CA
100A, 12V Out, 110V/220VAC In, AC/DC Battery Charger, 1 Bank
Sector:
Material Handling, Switchgear
Need:
Description
The BCA1550 battery charger provides up to 1550 watts to charge a one or two bank battery system at 12, 24, 32, 48 or 72(rail) volts from a 110 or 220 VAC source. The batteries must share a common ground.
Features include user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.
Protection include output overvoltage, battery or charger over temperature, low input voltage, overload and short circuit.
Features
- 150 watts of charging power
- Two or three bank charging
- Temperature compensation
- Manual equalization mode
- Two or three stage charging profiles
- Low EMI
- Adjustable float voltage
- Three year parts and labour warranty
- Typical Service Life : > 10 years (87,600 hrs)
Details
| Input Voltage: | 90 - 264 VAC |
| Input Current: | 3 Amps with Inrush Protection |
| Input Frequency: | 45 - 65 Hz |
| Efficiency: | > 90 % at Full Load |
| Power Factor: | > 0.98 at Full Load |
| Constant Output Voltage: | 12V |
| Output Current: | 100A |
| Duty Cycle: | Continuous |
| Stages: | 2 or 3 stage user selectable |
| Operating Temperature: | -25°C to +40°C @ maximum output. Derate Linearly 2.5% per °C from 40°C |
| Humidity: | 0 - 95% Relative Humidity (non-condensing) with standard conformal coating |
| Switching Frequency: | 50 ± 5% kHz |
| Phase: | Single Phase |
| Isolation Input-Case: | > 1500 VDC |
| Isolation Input-Output: | > 1500 VDC |
| Isolation Output-Case: | > 1500 VDC |
| Output Fuse: | 3x ATM30 |
| Length: | 42.7 CM |
| Width: | 20.8 CM |
| Height: | 9.7 CM |
| Weight: | 9.9 KG |
Construction
- Material and Finish : Marine Grade Black Anodized Aluminum with 18-8 Stainless Fasteners
- Wall Mount (With Drip Shield)
- Connections : AC Input - IEC Inlet 26.4mm Tab Flange Mount, DC Output - Phoenix VDFK 4 Connector (Black and Red)
Applications
- Military
- Industrial
- Telecommunications
- Transportation
- Alternative Energy
Standards
- Emissions Meets FCC Part 14, Class B
- Warranty : Three Years Parts and Labor
- Safety Built to meet CSA C22.2 No.107.1 and UL 458
