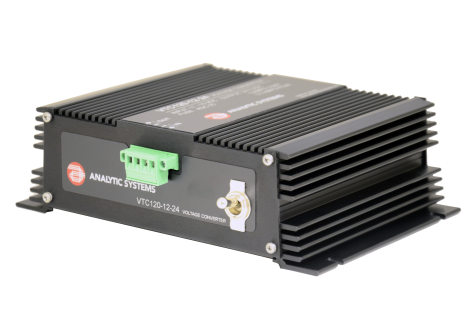

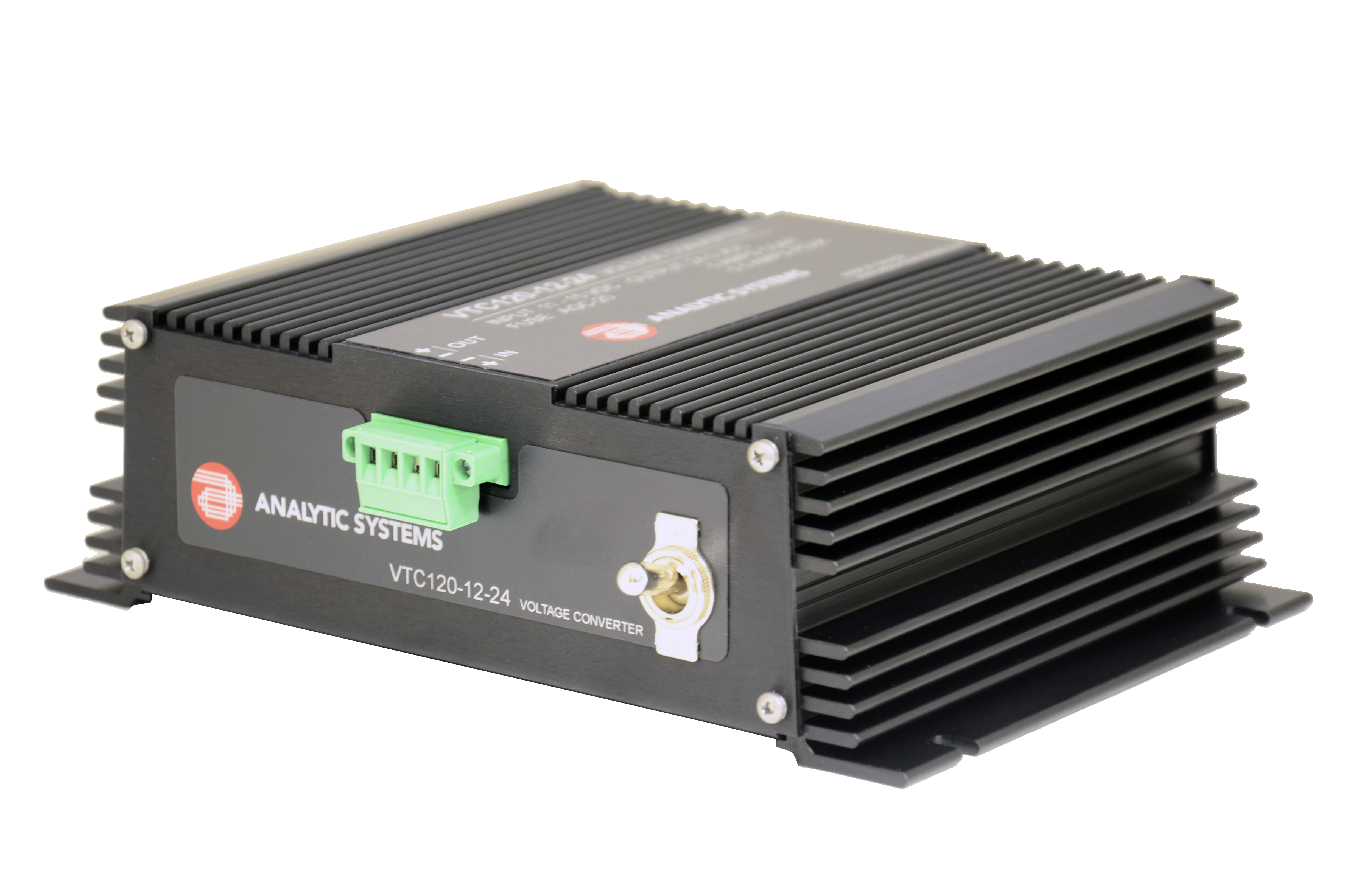

Analytic Systems VTC120h-12-12

SKU: VTC120h-12-12-CT-BC-CA
7.5A, 12V Out, 11-15V In, Iso DC/DC Converter
Sector:
Material Handling, Switchgear
Need:
Minimum Quantity
1
My Wishlist
Compare
Description

This all new single board design incorporates state of the art switchmode technology for unmatched efficiency and ultra-quiet operation.

Multiple stages of filtering reduce radiated or conducted noise to very low levels. Extra features include adjustable output voltage, audible and visual indicators for low input voltage, low output voltage, over temperature and overload.

Safety features include reverse input protection, over-temperature shutdown, current limiting, short circuit shutdown, a dry contact alarm relay output and output overvoltage crowbar. Optional features include a remote panel monitoring with On-Off control.

Features
  • Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature
  • Extremely rugged and well suited for marine and other demanding environments
  • High tolerance for shock and vibration
  • Ultra-quiet low EMI operation
  • Current limiting protection
  • Reverse input protection
  • Output over-voltage crowbar
  • Dry contact output fail relay
  • Three year parts and labour warranty

Details

Input Voltage: 11 - 15 VDC
Input Current: 20A
Efficiency: > 90 % at Full Load
Constant Output Voltage: 12V
Output Current: 25-35A
Duty Cycle: Continuous
Stages: 2 or 3 stage user selectable
Humidity: 0 - 95% Relative Humidity (non-condensing) with standard conformal coating
Isolation Input-Case: > 500 VDC
Isolation Input-Output: > 500 VDC
Isolation Output-Case: > 500 VDC
Input Fuse: AGC 25
Length: 23.1 CM
Width: 19.8 CM
Height: 6.4 CM
Weight: 1.8 KG

Construction

  • Material and Finish : Marine Grade Black Anodized Aluminum with 18-8 Stainless Fasteners
  • Wall or Shelf Mount
  • Four contact output terminal

Applications

  • Marine & other rugged environments
  • Electric Utilities and Substations
  • Industrial Controls (OEM Applications)
  • Field Work / Construction Sites
  • Emergency Backup Power (UPS)

Standards

  • Warranty : Three Years Parts and Labor
