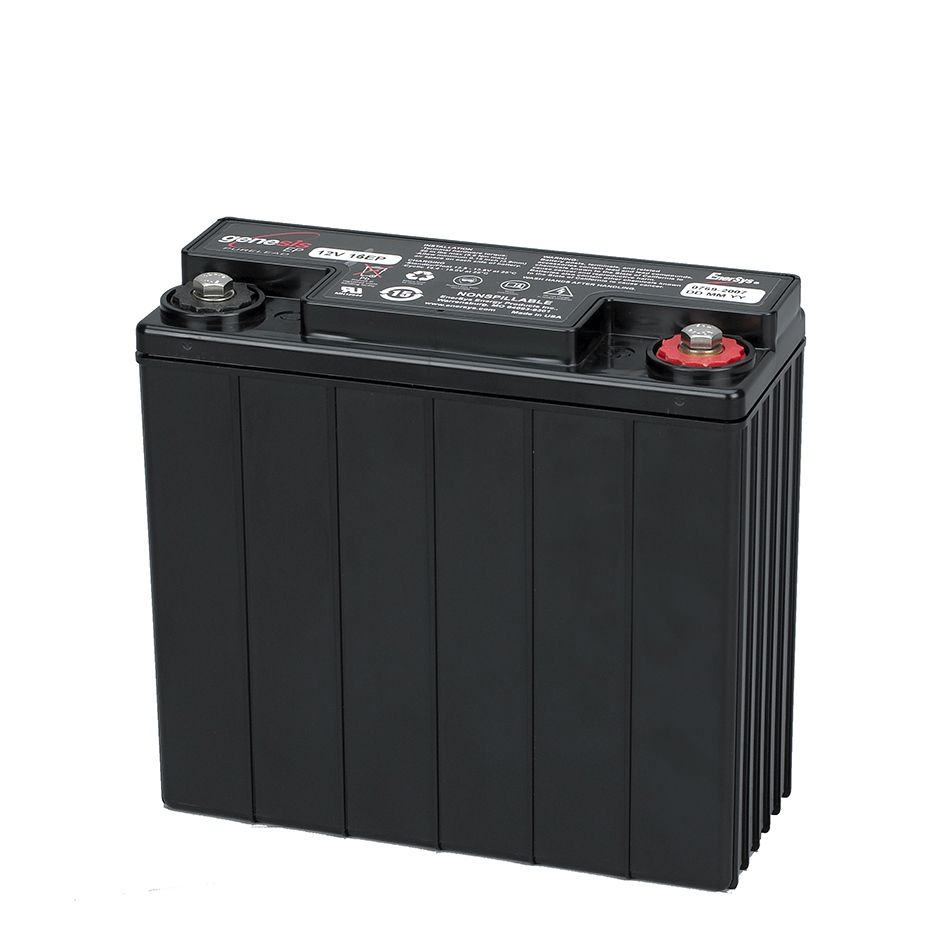

EnerSys Genesis G16EP 0769-2007
Since its introduction in the early 1990's, the Genesis EP thin plate pure lead (TPPL) battery has established itself as a premium high performance battery sutiable for a wide range of demanding applications.
Today, Genesis EP TPPL technology can be found in applications as diverse as electronics, medical equipment, telecommunications, lawn and garden equipment, computer backup and UPS applications. the TPPL technology allows the battery to pack more power into a smaller footprint. The EP brand also offers deep cycling capabilities, fast recharge abilities and a non spillable design which allows mounting in any position except inverted.
- More power in less space and weight
- Superior high rate discharge capability
- Safe for human environments such as offices and hospitals
- High reliability and frequency
- Lower corrosion rates and consistency
- 2 year shelf life
Details
Terminal Type: | M6 w/ss hardware |
Transport Class: | Approved for shipping as non-hazardous non-spillable - per IATA Special Provision A67 and 49 CFR |
Volts: | 12V |
Battery Capacity: | 16Ah |
Capacity Rate: | 10 hr rate to 1.67 volts/cell @ 77°F (25°C) |
Short Circuit Current: | 675A |
Length: | 18.08 CM |
Width: | 7.59 CM |
Height: | 16.69 CM |
Weight: | 6.1 KG |
Construction
- Rugged construction, optional metal jacket
- UL 94V-0 rated case and cover
- M6 female no-maintenance terminals
Applications
- Electronics
- Medical Equipment
- Telecommunications
- Computer Backup
- UPS
Standards
- Compliance with 49 CFR § 173.159(d)
- Classified as nonspillable batteries
- ISO 9001 certification
- ISO 14001 certification
