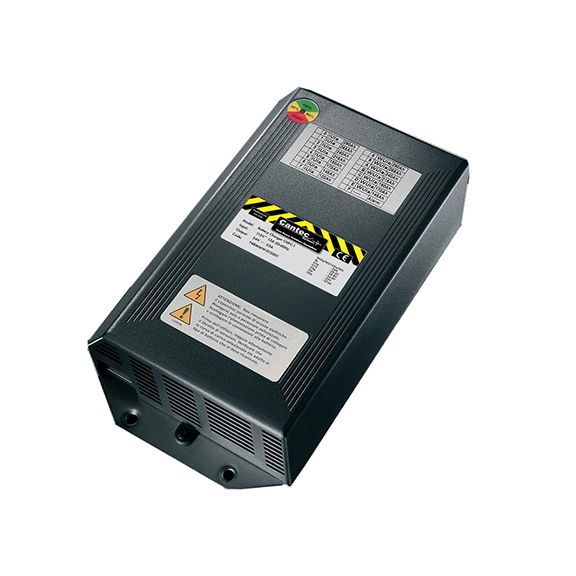

Cantec CHFC-1 24-35
SKU: CHFC-1 24-35-CT-ON-CA-WH-CSL
24V / 35A Battery Charger NO LONGER AVAILABLE
Sector:
Material Handling, Switchgear
Need:
Compact form factor, High Rate Power Delivery
Industry:
Description
This charger is no longer available. Please check Zivan NG1 CANBUS 24V 35A for a replacement product.
Features
- Operate at 85-90% efficiency for maximum power savings
- Optimized algorithms for reduced charging time
- Charge independent from the changes of the mains supply
- Auxiliary contacts for mains presence, battery presence or end of charge
- Microprocessor-controlled and internally protected against overload, short circuit, incorrect connection and voltage transients.
- Internal selector switch adapts the charger to various battery types
Details
| Input Voltage: | 115VAC ± 10% |
| Input Current: | 13 A |
| Input Frequency: | 60 Hz |
| Efficiency: | >85 % |
| Power Factor: | 0.68 |
| Absorbed Maximum Current: | 13 A |
| Inrush Current: | <2.7 A |
| Absorbed Minimum Power: | <5 W |
| Absorbed Maximum Power: | 1 kW |
| Constant Output Voltage: | 24V |
| Output Current: | 35A |
| Temperature Compensation: | -5 mV/°C |
| Temperature Sensor: | -20 to +50 °C |
| Output Voltage Ripple: | <1 % |
| Humidity: | 90% |
| Switching Frequency: | 50 ± 5% kHz |
| Phase: | single phase |
| Isolation Input-Case: | 500 VDC |
| Isolation Input-Output: | 1250 VAC |
| Isolation Output-Case: | 500 VDC |
| Leakage Current: | <3 mA |
| Input Fuse: | 20 A |
| Output Fuse: | 40 A |
| Length: | 30 CM |
| Width: | 16 CM |
| Height: | 8 CM |
| Weight: | 2.2 KG |
Construction
- Fan cooled
- Mounting flanges provided, vertical or horizonal orientation permitted
- Class IP20 enclosure
- NEMA 5-15P or IEC-C14 input cable
- Coated printed circuit boards
- Metal case base and self-extinguishing ABS cover
- 50A SB type output connector
Applications
- Floor care/cleaning machines
- Pallet trucks
- Shuttle personnel carriers
- Industrial utility vehicles
- Automated Guided Vehicles (AGV)
Standards
- Safety Requirements - EN60335-1, EN60335-2-29
- EMC Requirements - EN55014-1, EN61000-3-3, EN55014-2, EN61000-4-2, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11
- CE Certified
