SKU: CHFC-3 24-95-CT-ON-CA-WH-CSL

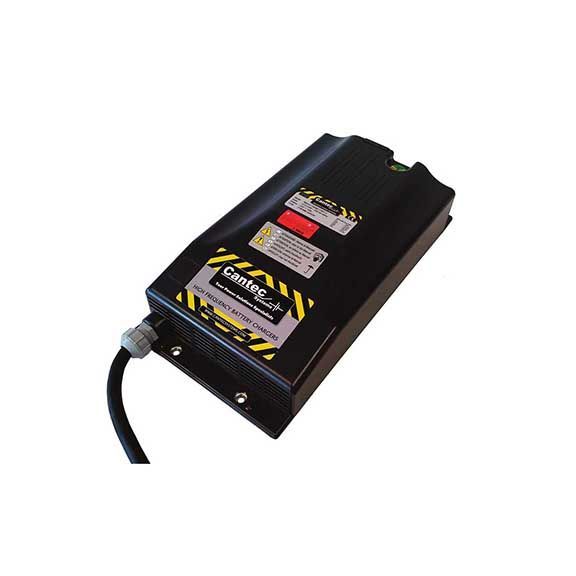

24V / 95A Battery Charger NO LONGER AVAILABLE
Sector:
Material Handling, Switchgear
Need:
Compact form factor, High Rate Power Delivery
Industry:
Minimum Quantity
1
My Wishlist
Compare
Description

This charger is no longer available. Please check Zivan SG3 24V 80A for a replacement product.

Features
  • Operate at 85-90% efficiency for maximum power savings
  • Optimized algorithms for reduced charging time
  • Charge independent from the changes of the mains supply
  • Auxiliary contacts for mains presence, battery presence or end of charge
  • Microprocessor-controlled and internally protected against overload, short circuit, incorrect connection and voltage transients.
  • Internal selector switch adapts the charger to various battery types

Details

Input Voltage: 230VAC ± 10%
Input Current: 17 A
Input Frequency: 50-60 Hz
Efficiency: >85 %
Power Factor: 0.68
Absorbed Maximum Current: 17 A
Inrush Current: <2.7 A
Absorbed Minimum Power: <5 W
Absorbed Maximum Power: 3 kW
Constant Output Voltage: 24V
Output Current: 95 A
Temperature Compensation: -5 mV/°C
Temperature Sensor: -20 to +50 °C
Output Voltage Ripple: <1 %
Humidity: 90%
Switching Frequency: 50 ± 5% kHz
Phase: single phase
Isolation Input-Case: 500 VDC
Isolation Input-Output: 1250 VAC
Isolation Output-Case: 500 VDC
Leakage Current: <3 mA
Input Fuse: 25 A
Output Fuse: 125 A
Thermal Alarm Temperature: 100 °C
Length: 43 CM
Width: 22 CM
Height: 11 CM
Weight: 5.5 KG

Construction

  • Fan cooled
  • Mounting flanges provided, vertical or horizonal orientation permitted
  • Enclosure Class IP20
  • NEMA 5-15P or IEC-C14 input cable
  • Coated printed circuit boards
  • Metal case base and self-extinguishing ABS cover
  • 50A SB type output connector

Applications

  • Floor care/cleaning machines
  • Pallet trucks
  • Shuttle personnel carriers
  • Industrial utility vehicles
  • Automated Guided Vehicles (AGV)

Standards

  • Safety Requirements - EN60335-1, EN60335-2-29
  • EMC Requirements - EN55014-1, EN61000-3-3, EN55014-2, EN61000-4-2, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11
  • CE Certified
