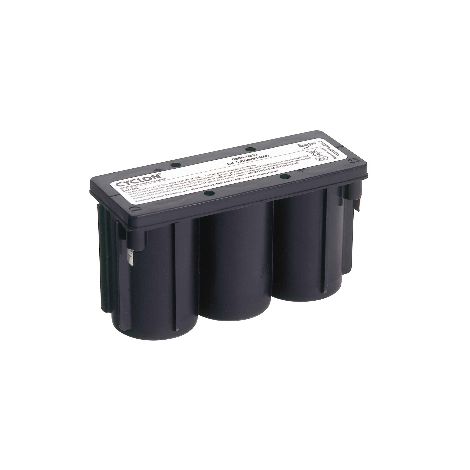

EnerSys Cyclon 0809-0012
SKU: 0809-0012-CT-ON-CA-WH-CSL
6V 5Ah Pure Lead-Tin X Monobloc Battery
Sector:
Uninterruptible Power Supply, Offshore applications, Solar Power, Telecommunications
Industry:
Need:
Rugged Construction, Long Shelf and Cycle Life, High Rate Power Delivery, Wide Operating Temperature
Description
X cell monobloc - Pure lead
Features
- High cycle life
- Long float life
- Low self discharge
- Wide temperature range
- Flexible mounting orientation
- Rugged construction
- High charge acceptance
- High stable voltage delivery
- Power density
- High Rate Power Delivery
Details
| Terminal Type: | Faston .250 x.025 IN |
| Transport Class: | Approved for shipping as non-hazardous non-spillable - per IATA Special Provision A67 and 49 CFR |
| Volts: | 6V |
| Battery Capacity: | 5.0Ah |
| Capacity Rate: | 10 hr rate to 1.67 volts/cell @ 77°F (25°C) |
| Short Circuit Current: | 570A |
| Length: | 13.93 CM |
| Width: | 5.38 CM |
| Height: | 7.67 CM |
| Weight: | 0.98 KG |
Applications
- Telecommunications
- Uninterruptible power supplies
- Defense installations
- Computer back-up
- Extreme temperature environments (-65°C to +80°C or -85°F to +176°F) for single cells
Standards
- Manufactured to EnerSys standards in ISO 9001 registered production facilities worldwide.
- Approved for shipping as non-hazardous, non-spillable - per IATA Special Provision A67 and 49 CFR
