EnerSys Powersafe m50-09

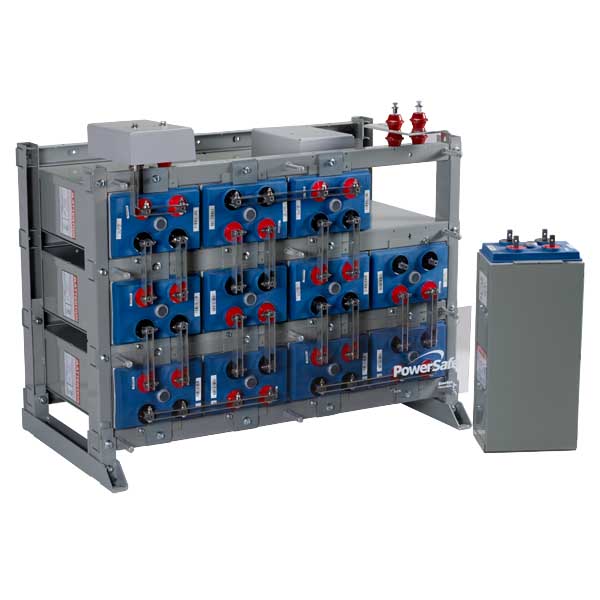

The PowerSafe® mSeries battery system offers an ideal solution for large capacity Valve Regulated Lead Acid (VRLA) battery requirements. The system’s steel can (module) design with its integral racking system, provides a cost effective battery system with a compact, quick and simple installation process.
The PowerSafe mSeries battery system’s cutting-edge technology incorporates an enhanced cell design with thicker positive plates for longer life. The welded/epoxy, dual post seal design provides the highest seal integrity in the industry.
Copper inserted square post design enhances the performance. The batteries are encased in dedicated protective steel cans (modules) that maintain constant, uniform compression for the life of the battery.
The racking system provides total flexibility for system configuration and allows fast, simple installation, while providing necessary robustness for NEBS™ requirements.
- Capacity range 200 - 2000Ah
- Steel module design, cells factory installed in permanent steel modules with one or two cells per can
- Standard top termination – optional side termination
- Clear flame retardant safety shields allow for easy visual inspection without removal
- Inter-unit connectors and terminal plates : tin-plated copper
- Flexible module configuration – 2, 3, 4 or 6 cells wide in single cell modules
Details
Terminal Configuration: | Standard top termination – optional side termination |
Terminal Type: | Terminal post – square lead-tin coated copper insert cross-drilled (0.25” holes) with large surface area, to provide maximum conductivity |
Transport Class: | Approved for air transportation (IATA A67) |
Volts: | 4V |
Battery Capacity: | 200Ah |
Capacity Rate: | 15 min. rate to 1.67 VPC @ 77°F (25°C) |
Length: | 18.8 CM |
Width: | 38.6 CM |
Height: | 16.5 CM |
Weight: | 34.3 KG |
Construction
- Positive plate – thick 0.252” lead-calcium-tin grids minimize corrosion and prolong life
- Negative plate – balanced lead-calcium grids optimize recombination efficiency
- Absorbed Glass Mat (AGM) separator - mechanically strong, low electrical resistance, absorbed glass mat, which completely absorbs the electrolyte into its structure
- Container/cover - standard UL94 V-0 flame retardant polypropylene (LOI 28%)
- Terminal seal – ring burn with secondary epoxy resin seal is 100% water bath tested in the factory and proven in service
- Relief valve – operates at 2-3 psi and is complete with integral flame arrestor
- Separators
Applications
- Uninterruptible Power Supply
- Telecommunications
- Power Generation/Distribution
Standards
- Non-spillable classification (UN2800)
- Recognized by UL (UL standard 1989)
- Cell is NEBSTM certified
- The management systems governing the manufacture of this product are ISO 9001 : 2008 and ISO 14001
