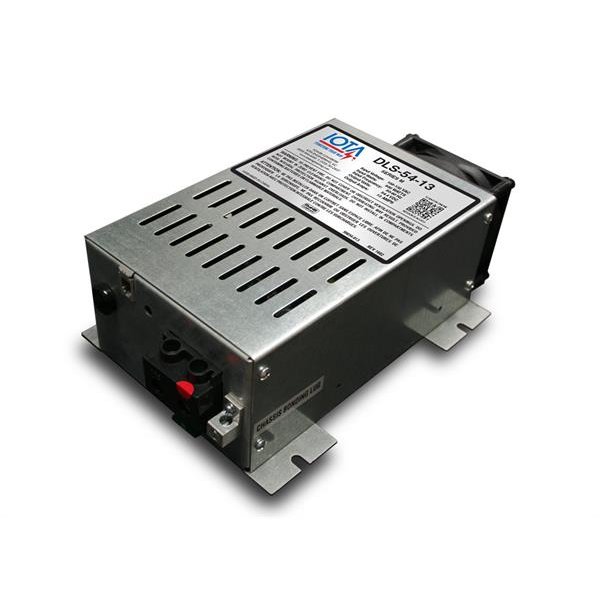

IOTA Engineering DLS DLS 54V 13A IQ 3 Color M6

SKU: DLS 54V 13A IQ 3 Color M6

48V 13A 108-132 VAC In AC/DC Battery Charger

Industry:

Industrial

Sector:

Material Handling, Telecommunications

My Wishlist Compare

Back to: AC Battery Chargers

Description

The DLS 54V 13A Power Converter/Battery Charger from IOTA converts nominal 108-132 AC voltage to 54.4 DC voltage for 48V battery charging.

As a battery charger, the unit will maintain the battery, delivering its full-rated current when the battery capacity falls sufficiently low. The voltage is set to deliver its maximum current for the necessary period of time to minimize undue stress to the battery caused by heating of its cells. This helps to ensure the longest possible life of the battery. Over time, as the battery nears its full capacity, the DLS will automatically drop the current, providing a float-charge to the battery to prevent self-discharge of the cells.

Features

Switch-mode technology
Exceptionally clean DC output
Tight line-load regulation
Quickly and efficiently charges batteries
Designed to withstand low transient AC line voltage

Current limit and thermal/overload protection
Quiet fan operation
External reverse polarity fuse protection from incorrect battery connection
High and normal-stage charging jack

Details

Input Voltage:	108 - 132 VAC
Input Current:	19.5 A (@ 108VAC)
Input Frequency:	47 - 63 Hz
Efficiency:	> 80 % at Full Load
Constant Output Voltage:	24 VDC
Output Current:	13 A

Maximum Power:	700 W
Stages:	4 stage with IQ4 Smart Charge Controller
Phase:	Single Phase
Isolation Input-Case:	> 1700 VDC
Isolation Input-Output:	> 1700 VDC
Isolation Output-Case:	> 500 VDC
Length:	33.02 CM
Width:	16.51 CM
Height:	8.64 CM
Weight:	3.54 KG

Construction

Expanded terminal block UL rating to accommate 2-gauge connection for greater installation distance and less voltage drop
Two mounting footprint options with additional mounting adaptor plate
