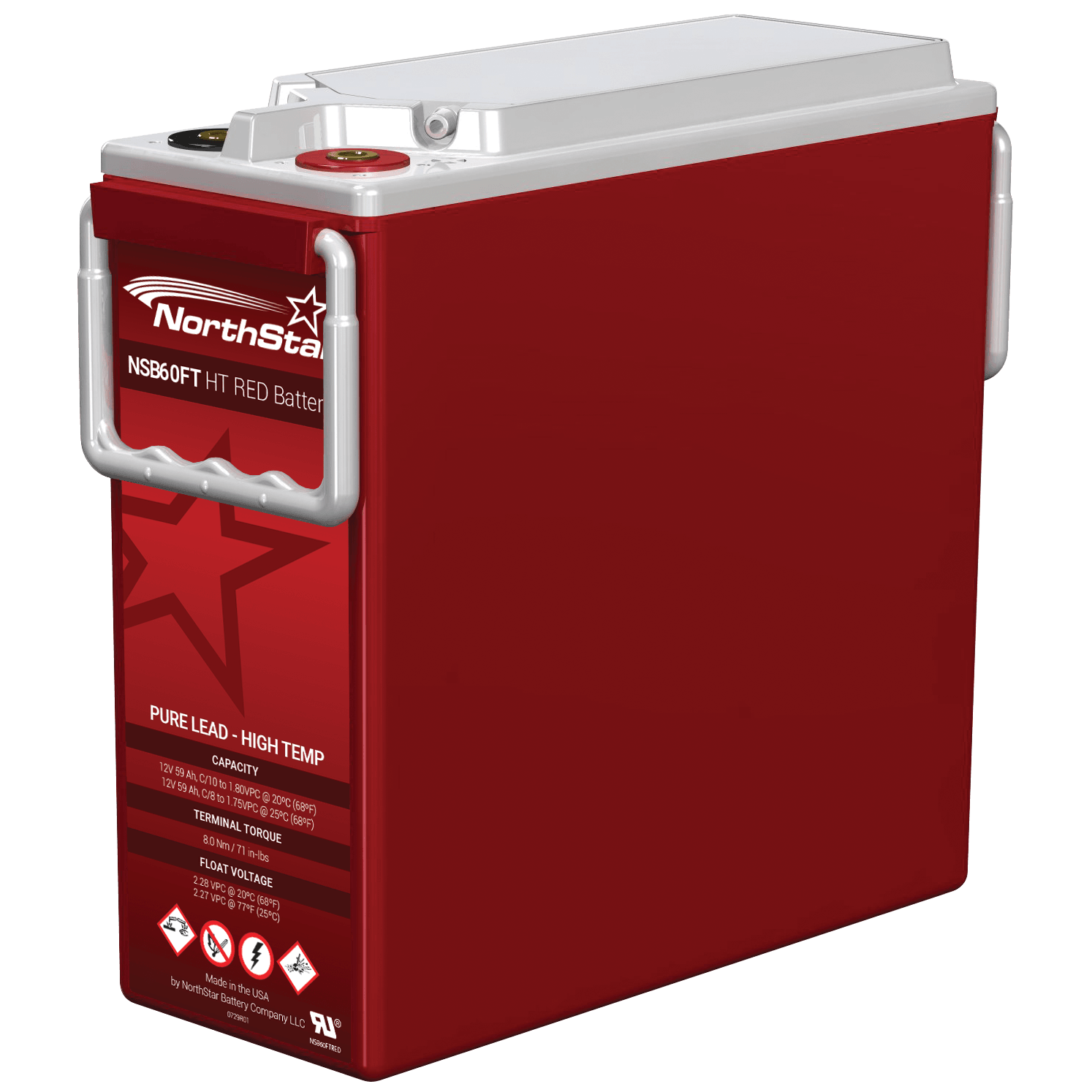

NorthStar HT RED NSB 60FT

SKU: NSB-60FT-HT-RED-CT-ON-CA
12V 60Ah Pure Lead Battery for high temperature applications
Sector:
Data Center, Switchgear, Telecommunications, Cable TV
Need:
Long Shelf and Cycle Life, Wide Operating Temperature, Deep Discharge Recovery, High Rate Power Delivery
Industry:
Energy, Infrastructure, Resources, Technology
Minimum Quantity
2
My Wishlist
Compare
Description

Pure Lead - High Temp

High temperatures can severly reduce the life of a battery, driving up maintenance and replacement costs, not to mention the unwanted downtime. And keeping batteries in an optimal 20⁰-35⁰C (68⁰-95⁰F) temperature range can be expensive, or sometimes impossible depending on the site.

The NSB HT RED Battery® provides exceptional performance and long float life, even at elevated temperatures. This means huge potential cost savings, due to reduced battery replacement, cooling and maintenance. Conventional lead acid batteries use lead alloys with additives which increase the strength so they can withstand handling during the battery making process. The downside of using these alloys and additives is that the batteries suffer from faster corrosion and component aging.

Our advanced manufacturing process eliminates the need for alloys and additives - our AGM thin plate pure lead technology delivers larger and thinner plates, which means more surface area for active material reactions, which increases power density.

Features
  • Pure lead electrochemistry greatly increases temp and corrosion resistance while reducing component aging
  • Thin plates deliver large surface area high power density and low resistance
  • Design life 15+ years at 20°C (68°F)
  • Extra long life at high temp operation 40°C (104°F)
  • EUROBAT design life definition: Very Long Life (12+ years)
  • Fast recharging
  • High cyclic performance
  • Operating temperature range -40°C to +65°C (-40°F to 149°F)

Details

Terminal Configuration: Front Terminal
Terminal Type: Female M8 x 1.25
Volts: 12V
Battery Capacity: 60Ah
Capacity Rate: 10 hr rate to 1.80 volts/cell @ 77°F (25°C)
Short Circuit Current: 2100A
Length: 28.7 CM
Width: 10.8 CM
Height: 26.3 CM
Weight: 21 KG

Construction

  • Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
  • Flame retardant (UL 94 VO) and LOI of at least 28%
  • High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
  • Non-halogenated thermally sealed plastic casing

Applications

  • Wireless and fixed line communications
  • Cable TV
  • Emergency lighting
  • Power generation
  • Offshore applications

Standards

  • EUROBAT design life definition: Very Long Life (12+ years)
  • Compliant with: Telcordia SR4228, IEC 60896; Bellcore GR-63-Core, Issue 1; British, German, and Russian telecom standards; UL approved and UN2800 certified. NorthStar is registered to ISO 9001 and ISO 14001.
