RediPulse Pro-12 12 Station Battery Maintenance System

SKU: 746X912-CT-TX-US-(CA-RS)
RediPulse Pro-12 12 Station Battery Maintenance System
Minimum Quantity
My Wishlist

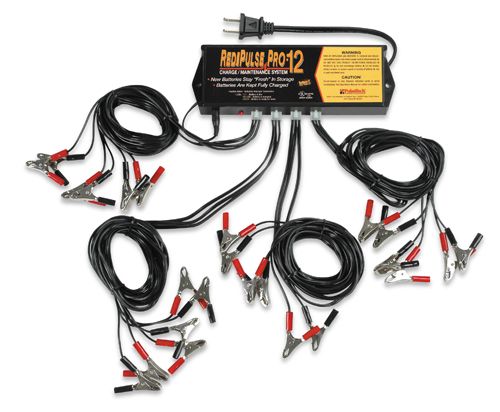

If you inventory or service lead-acid batteries, the RediPulse Pro-12® keeps them "factory fresh". Connect from one to 12 stored 12-Volt batteries from a single AC outlet safely with no sparking between the battery leads. A continuous cycle of low amperage charging reverses the normal discharge rate and the high frequency patented Pulse Technology reduces sulfation buildup. An audible alarm signals if cables are reversed. LED lights indicate the status of each individual battery.

NSN 6130-01-535-2718.

  • Recover, charge, maintain and desulfate two 12-Volt batteries
  • Works on all types of 12-Volt VRLA, AGM, flooded and gel lead-acid batteries
  • Patented Pulse Technology removes sulfate crystals and extends battery life
  • 5 LED indicators per cable connection
  • Reverse polarity protected
  • Spark free operation
  • Works anywhere in the world with detachable IEC connector
  • Single switch operation
  • One-Year Limited Warranty


Input Voltage: 110 - 240 VAC
Input Current: 2.5 Amps Max at 100 VAC (All outputs @6 Amps)
Input Frequency: 50 - 60 Hz
Constant Output Voltage: 14.8 Volts
Output Current: 6 Amps per Channel, 12 Amps Max
Length: 18.42 CM
Width: 5.72 CM
Height: 2.54 CM
Weight: 1.95 KG


  • Battery Disconnected Indicator
  • Bad Battery Indicator
  • Recovery Charge Indicator
  • Pulse Charge Indicator
  • Charge Complete Indicator
  • Reverse Polarity Indicator
  • Temperature Shutdown Indicator
  • Battery Cable Length: 96″ - 14 AWB from box to battery clamps
  • Enclosure: Black HPX Plastic


  • Military
  • Commercial
  • Fleet
