S-24V20-U1
SKU: S-24V20-U1

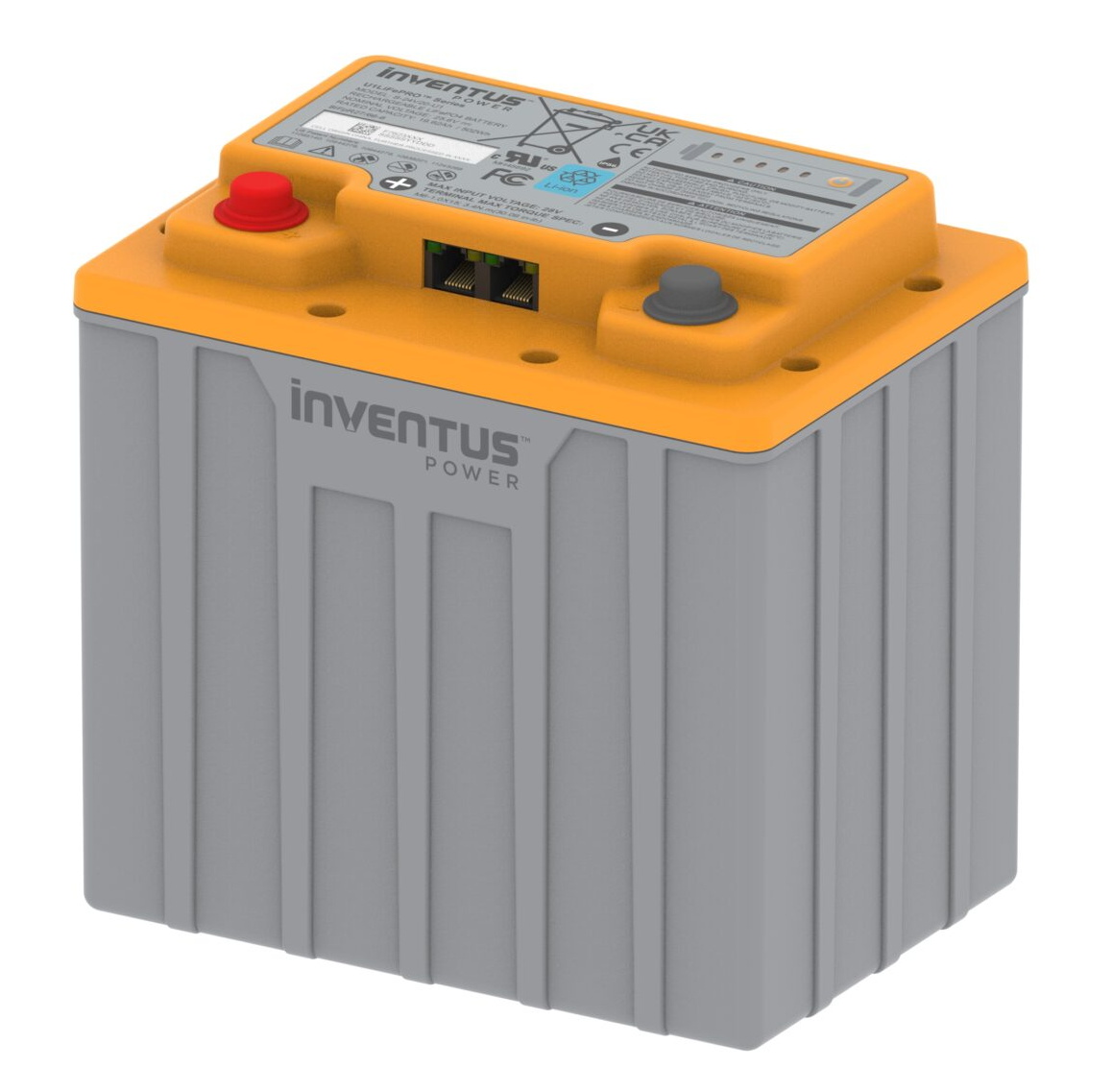

S-24V20-U1 U1LiFePRO® Lithium-ion Battery Pack
Sector:
Medical, Material Handling
Industry:
Description
PROformance Series Lithium-ion Batteries
Intelligent, robust & high-performing battery solutions for motive applications
- Advanced battery systems designed to work in the toughest and most demanding motive environments
- Available in two models: M-version (standard) and S-version (terminals always active with no heater)
- Advanced BMS with configurable software to optimize safety and performance
- Operates down to -35°C with optional heater
- Global certification (UL, TUV, etc.)
- Modular to support various power requirements
- Advanced balancing technology
Features
- Automotive grade cells from top tier manufacturers
- Fast charging within 3 hours
- Long shelf life performance with shutdown mode
- Scalable to increase runtime
- Automotive grade cells from top tier manufacturers
- Supports regenerative braking
- Soft start control (System pre-charge)
- Patented virtual BMS with Advanced Module Balancing Technology
- Universal Communication Protocol (CANopen/RS485)
- UL2054 Shock &
Details
| Terminal Configuration: | M6 |
| Volts: | 24 VDC |
| Battery Capacity: | 19.6 Ah |
| Length: | 19.1 CM |
| Width: | 13.4 CM |
| Height: | 18.5 CM |
| Weight: | 5.7 KG |
Construction
- BCI Size U1
- Terminal Type (ISO) M6
- Terminal Torque (Nm) 3.4 ± 0.5 Nm
- Installation Orientation Horizontal / Vertical
- Ingress Protection Rating IP56
- Case Flammability Rating Flame Retardant UL94 V-0
Applications
- Medical Carts
- E-Mobility
- Material Handling
- Robotics
Standards
- UL1642 (Cell)
- UL2054 (Pack)
- IEC62133 (Cell/Pack)
- FCC Class B
- CE
- UN/DOT 38.3
