XCR-20 Xtreme 12V Battery Recovery Charger & Desulfator 16 Amp

SKU: 100X500-CT-TX-US-(CA-RS)
XCR-20 Xtreme 12V Battery Recovery Charger & Desulfator, 16 Amp
Minimum Quantity
My Wishlist

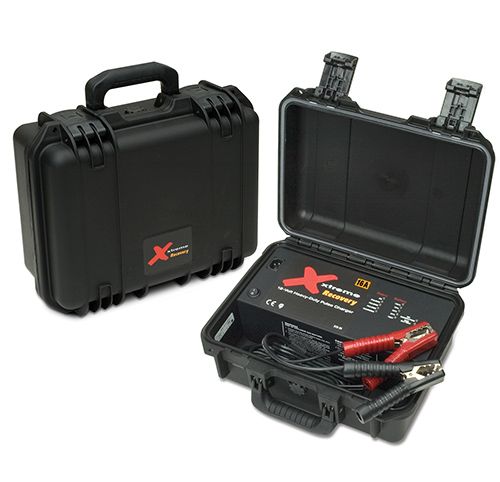

The PulseTech® Xtreme Charge® XCR-20 Recovery Charger is a 16-Amp shop charger and desulfator built to recover any type of 12-Volt lead-acid battery (VRLA, AGM, gel and flooded cell) anywhere in the world allowing you to recover batteries previously thought dead or useless. Our patented Pulse Technology reduces sulfation build-up on the battery plates resulting in improved battery performance and extended battery life.

Self-enclosed in a convenient, water-resistant heavy-duty case, this 12-volt battery recovery charger desulfator is portable and easy to store. Heavy-duty battery clamps are replaceable.

  • Recover, charge, maintain and desulfate two 12-Volt batteries
  • Works on all types of 12-Volt VRLA, AGM, flooded and gel lead-acid batteries
  • Patented Pulse Technology removes sulfate crystals and extends battery life
  • 5 LED indicators per cable connection
  • Reverse polarity protected
  • Spark free operation
  • Works anywhere in the world with detachable IEC connector
  • Single switch operation
  • One-Year Limited Warranty


Input Voltage: 110 - 240 VAC
Input Current: 2.5 Amps Max at 100 VAC (All outputs @6 Amps)
Input Frequency: 50 - 60 Hz
Constant Output Voltage: 14.8 Volts
Output Current: 6 Amps per Channel, 12 Amps Max
Length: 36.07 CM
Width: 28.96 CM
Height: 16.51 CM
Weight: 5.03 KG


  • Battery Disconnected Indicator
  • Bad Battery Indicator
  • Recovery Charge Indicator
  • Pulse Charge Indicator
  • Charge Complete Indicator
  • Reverse Polarity Indicator
  • Temperature Shutdown Indicator
  • Battery Cable Length: 96″ - 14 AWB from box to battery clamps
  • Enclosure: Black HPX Plastic


  • Military
  • Commercial
  • Fleet
