S-24V60-TRX

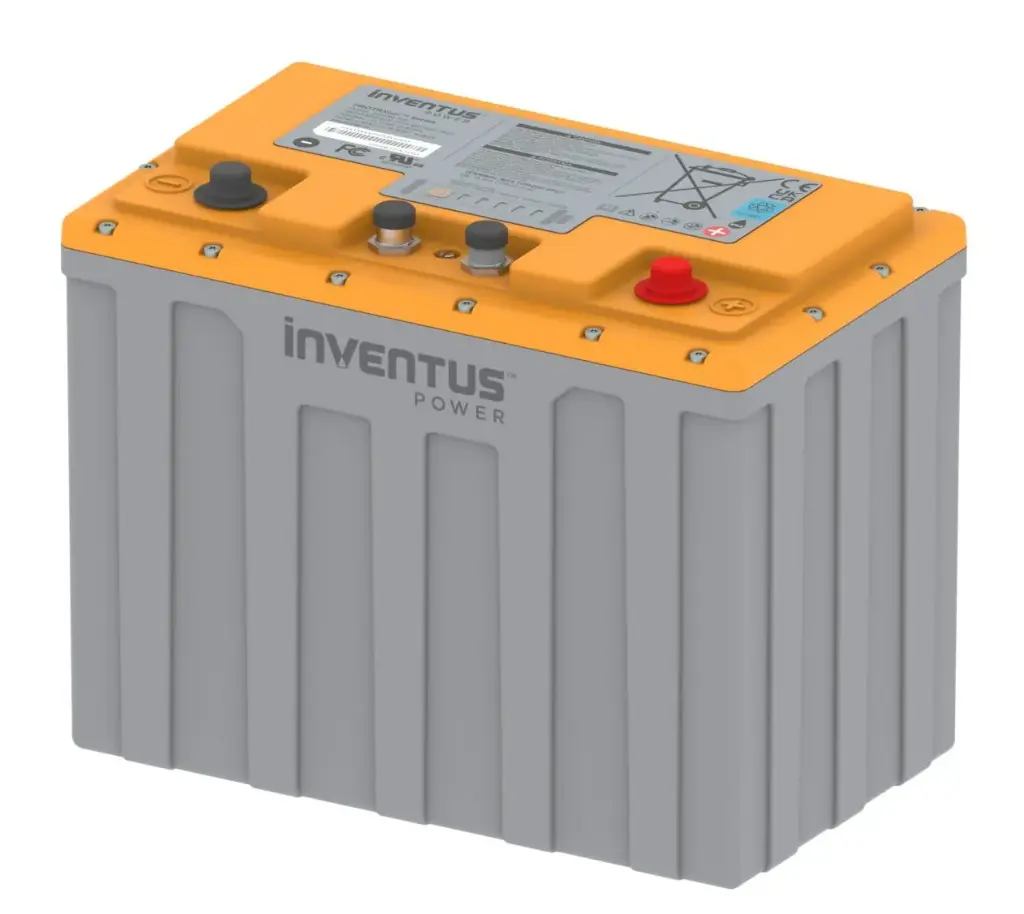

S-24V60-TRX PROTRXion® 24V, 60Ah Li-ion Battery Pack
Please Log in to see buy options.
PROformance Series Lithium-ion Batteries
Intelligent, robust & high-performing battery solutions for motive applications
Advanced battery systems designed to work in the toughest and most demanding motive environments
Available in two models: M-version (standard) and S-version (terminals always active with no heater)
Advanced BMS with configurable software to optimize safety and performance
Operates down to -35°C with optional heater
Global certification (UL, TUV, etc.)
Modular to support various power requirements
Advanced balancing technology
Features
- Automotive grade cells from top tier manufacturers
- Fast charging within 3 hours
- Long shelf life performance with shutdown mode
- Cold temperature functionality (-35°C) with optional integrated heater
- Supports regenerative braking
- Soft start control (System pre-charge)
- Patented virtual BMS with Advanced Module Balancing Technology
- Universal Communication Protocol (CANopen/J1939)
- Vibration + Thermal
- Compatible with many off-the-shelf chargers
| Volts | 24 VDC |
| Capacity | 59 Ah |
| Terminal Type | M8 |
| Terminal Config | M8 (Neg), M8 (Pos) |
| Length | 29.9 cm |
| Width | 17.7 cm |
| Height | 23.0 cm |
| Weight | 16.7 kg |
- Terminal Type (ISO) M8
- Terminal Torque (Nm) 17 ± 1
- Installation Orientation Horizontal / Vertical
- Ingress Protection Rating IP67
- Case Flammability Rating Flame Retardant UL94 V-0
- Light Electric Vehicles
- Aerial Work Platform
- Material Handling
- Robotics
- FCC Class B
- UL1642 (Cell), UL2271 (Pack)
- IEC62133 (Cell/Pack)
- IEC62619
- UN/DOT 38.3
- CE
- RoHS
- WEEE
